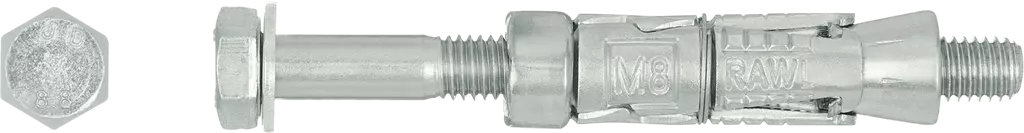

Rawlplug Mechanical Anchor Bolts M6 x 55mm (50 Pack) – Heavy-Duty Fixings

Rawlplug Mechanical Anchor Bolts M6 x 55mm (50 Pack) – Heavy-Duty Fixings

£14.99 GBP
£14.99 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
Description

World's most popular all-purpose expanding shield anchor - loose bolt version

Features and Benefits
  • RAWLBOLT® - first ever mechanical anchor in the world, forerunner of all of the later mechanical anchors
  • For use in cracked and non-cracked concrete (ETA option 1), hollow-core slabs, flooring blocks and ceramics
  • Product recommended for applications requiring fire resistance
  • Three-pieces expanding sleeve of maximum expansion provides optimal load and safety of use in any substrate
  • Wide range of diameters (M6 to M20)
width="675" height="422" src="https://www.youtube.com/embed/X9DkX4N9DKU" title="YouTube video player" frameborder="0" allow="accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture" allowfullscreen="" data-gtm-yt-inspected-17="true">
Certificates, approvals
Base Material
  • Cracked concrete C20/25-C50/60
  • Non-cracked concrete C20/25-C50/60
  • Unreinforced concrete
  • Reinforced concrete
  • Hollow Lightweight Concrete Block LAC 5 ≥ 5MPa
  • Hollow Sand-lime Brick ≥ 15MPa
  • Hollow-core Slab C20/25
  • Hollow-core Slab C30/37-C50/60
  • Natural Stone (after site testing)
Applications Categories
  • Fencing / Gates
  • Machinery
  • Pipework

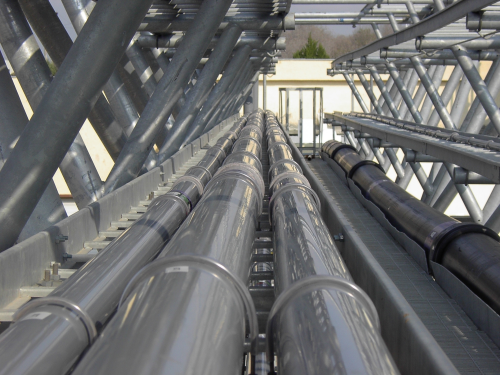

  • Cable Trays
  • Conduits
  • Platforms
  • Structural Steelwork
  • Shutters
  • Temporary Work
Installation Guides
  • Drill a hole of required diameter and depth. Note: When fixing into brickwork, mortar joints should be avoided
  • Clear the hole of drilling dust and debris (using blowpump or equivalent method)
  • Remove pre-assembled bolt and washer. Insert shield into hole and tap home with hammer until flush with surface
  • Insert bolt with washer through fixture into the shield
  • Tighten to the recommended torque
